CNG Dispensers
CAT Series
- Meets highest level of safety, reliability & performance demands.
- Accuracy class : +1.0% (Indian recommendation OIML R139-1=+1.5%
- Minimum Delivery-MMQ: 2 kg
- Delivered Medium Type : CNG
- Performance : max 300VA
- Mechanical Features : Filling Hose – 3/8″ (Cars), 1/2″ (Buses)
- Mechanical Environment Class: M1
- Electromagnetic Environment Class : E1
- Approvals : PESO, W&M conformity with OIML R139 1,2

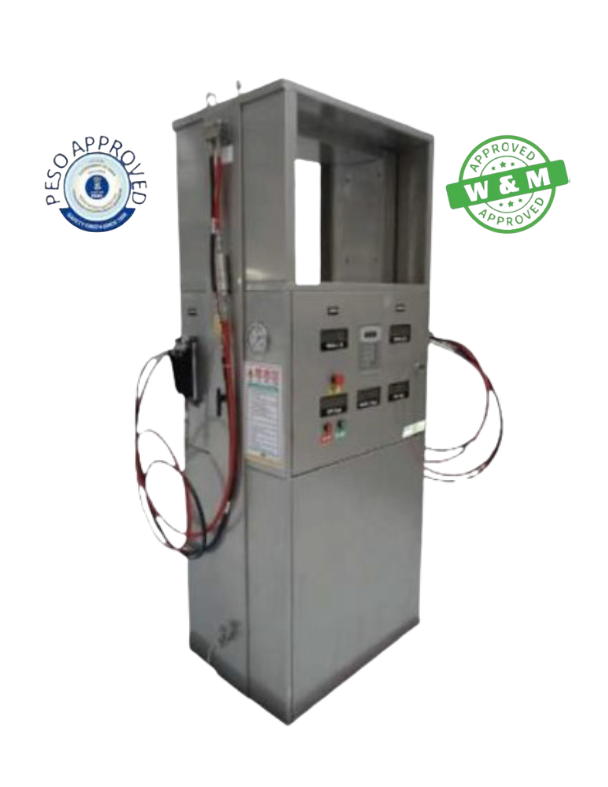

CNG Dispenser
- Car Dispenser
- Bus Dispenser
- MRU Dispenser
- Car & Bus Dispenser Combo
Specifications
Electronic: Battery protected memory for the security in the event of a power failure, LED Back light/ LCD (amount, mass, unit price), Reliable Mass Calculator, Start/ Stop button
Hydraulics: Coriolis Mass Flow Meters, Solenoid Valves, Testing Pressure: 43 MPa (430 Bars)
Options: 1 to 3 Inlet Lines, Emergency Signal & Stop Button, Steel Housing, Bus Dispenser, Combo Dispenser & MRU Dispenser available.
Technical: Factory tested, Accuracy + 1.0% with min. dispensed mass 2 Kg., Power supply 1 phase 230V AC, 50 Hz, + 10%.
Mechanical: Foundation frame, Free hanging Hoses for easy use, Twin hose line with re-connectable break-aways.
